^B3 — Code 39 Barcode

Goal

Print a Code 39 barcode with ^B3.

Description

^B3 prints Code 39 (USD-3): capitals, digits and - . space $ / + %. Parameters are orientation, check digit, height, interpretation line and its position.

Example

^XA
^BY3
^FO20,20^B3N,N,70,Y,N^FDCODE39^FS
^XZ

Result

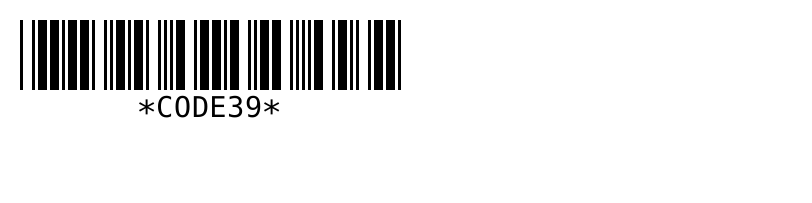

A Code 39 symbol of CODE39 with the human-readable line under the bars.

Article author: Andrei Olegovich
